High Mast Light Poles

High Mast Light Poles
Product Code : KSP-05
Price And Quantity
  • Minimum Order Quantity
  • As Per Requiremen1t
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 40000 INR
Product Description

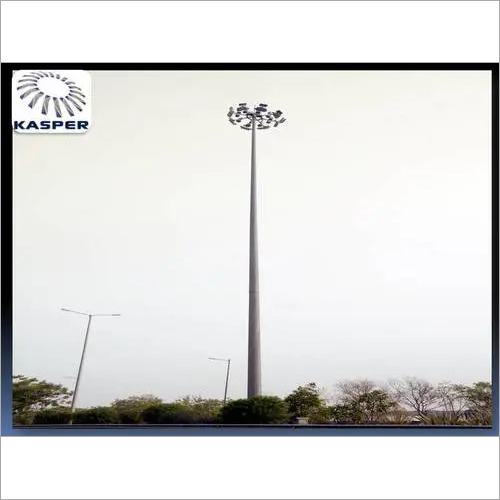

High Mast Light Poles

We are a leading enterprise, engrossed in providing the best quality High Mast Light Poles. Known for their excellent durability, robust construction, accurate dimension, the offered poles are available in various colors and sizes. The provided poles are used to be at the roadsides and highways for the installation of lights. Made from iron and steel, the offered High Mast Poles can be availed within minimum quantity order as per the needs and requirements of our valuable clients.

Key Points:

  • Easy to install
  • Highly resist to corrosion
  • Attractive design

We offer High Mast Light Poles, which are utilized for area lighting. The lighting is favored over conventional lighting, as these can achieve very large area to height ratios. The products can light up large areas without the requirement for many lighting columns. With continuous pointed polygonal cross subdivision the poles also have high load bearing strength vibration due to wind speed and related accent. The absolute masts with component are fully hot dip galvanized for extended life. The fixed type head frames are configured with non corrosive aluminum pulley system for extended service life and perfect equilibrium. The winches are also provided without the break of clutches. These self lubricated High Mast Light Poles are appreciated for sustained trouble free life.

Advantages:

  • Lantern carriages are often sectioned with wire ropes, which can be effortlessly  lowered /elevated in the electric and automatic mode.
  • Available with custom built designing, offered with standard lighting arrangement, various types and different configurations.
  • Head frame components of suspension types are offered for finer making an equilibrium.
  • Aerodynamic configuration, mechanically strong to carry off the wind speed, simplest for installation as the bases are identical from all directions.

Applications

  • Outdoor lighting for yard illumination, area lighting, lighting in motor-truck terminal.
  • Telecoms antenna framework, For camera mounting, setup in petrochemical plant.
  • Overhead Power Transmission
  • Assemblage for Petrol Pump
  • Monopole
  • Telescopic Tilting Mast
  • Traffic Signal
  • Advertising Pole
  • Street Lamp Posts
  • Solar / Wind Poles
  • Garden
  • Lamp Posts

Technical Specifications


18 MTR

16 MTR

15 MTR

Material construction

MS IS 2062/
BSEN 10025
FE 510 C
MS IS 2062/
BSEN 10025
FE 510 C
MS IS 2062/
BSEN 10025
FE 510 C

No. of longitudinal welds

Single

Single

Single

Cross section of mast in polygon (No. Of sides)

20

20

20

Thickness

4,4mm

4,4mm

4,4mm

Individual section's length

9375mm

8300mm

7800mm

Base and top dia (OAF)

422/200mm

422/200mm

422/200mm

Thickness of galvanization (minimum) IS 2629

86 microns

86 microns

86 microns

Size of opening door at base

350x1100mm

350x1100mm

350x1100mm

Size of base plate diameter

625mm

625mm

625mm

Size of base plate thickness

32mm

32mm

32mm

Number of foundation bolts

8

8

8

PCD of foundation bolts

830mm

830mm

830mm

Type of foundation bolts

Tor Steel (410 Mpa Y.S)

Tor Steel (410 Mpa Y.S)

Tor Steel (410 Mpa Y.S)

Bolt diameter

28mm

28mm

28mm
